Yamaha YFM110 children's quad
Delivery at the dealership.
Inspiring a new generation of drivers
Children and adults alike were fascinated by the YFM90R, so this new model comes with guarantees.
Upgraded with a 112cc fuel-injected engine for increased performance and response, it's the ideal ATV for older kids to get ready to race, while adults keep cool, calm and in control.
This supremely capable ATV features design cues from its big cousin, the YFM700R, in a kid-sized package that lets them feel like they're riding the real thing, ready to tackle any terrain.
Kids will never want to get off their ATV. For this reason, the YFM110R has been designed to be robust, reliable and incredibly easy to maintain. Minimum work for the adults, maximum fun for the children.
At a glance:
- Same as YFM700R
- Powerful 112 cc fuel-injected engine
- Automatic transmission - Forward/neutral/reverse
- Safe riding with true ATV character
- Safe braking thanks to sealed drum brakes
- Parents can control and set the speed by means of the acceleration limiter
- ANSI-approved for children aged 10 and older
The YFM110R may look small, but it incorporates many features of larger Yamaha models such as independent double wishbone front suspension, rear disc brake, CVT transmission and electric start. #DRIVENBYVICTORY
The YFM110R combines the impressive power and response of a 112cc fuel-injected engine with a wide range of features to give you total peace of mind.

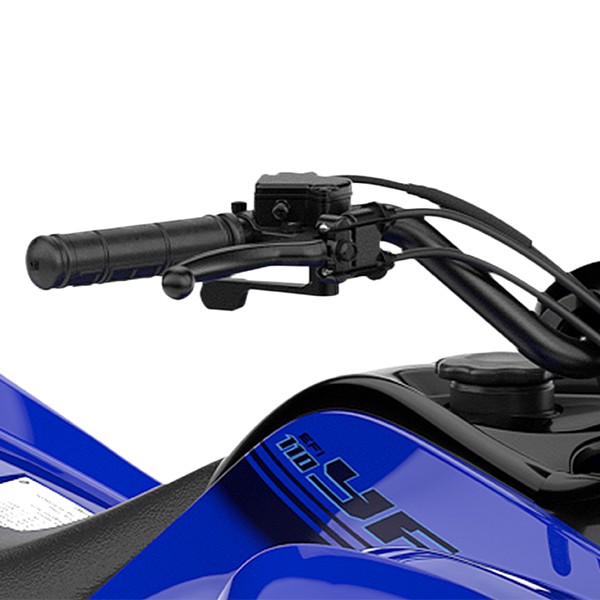

The TCI module adjusts engine power to different riding abilities, while the parking brake on the handlebars ensures the YFM110R stays exactly where you left it.
Easy, fun to use and simple to maintain. The Yamaha YFM110R is the best choice for safety-conscious parents. What's more, with its design inspired by the sporty YFM700R, this mini ATV will be at the top of every youngster's holiday wishlist.
Discovery even more advantages of the Yamaha YFZ50 children's quad bike:
- Power with parental control: the 112cc fuel-injected engine provides plenty of power that will excite older and more experienced riders, while simple parental controls help you limit the power for riders who have yet to gain confidence.
- Electric starter: start-up is as easy as driving and maintenance. Forget about complications: quick start button under the seat gets the YFM110R going. It is ideal for beginner drivers aged 10 years and over.
- Forward, neutral and reverse: The YFM110R features a lever for forward/neutral/reverse gear selection, providing added convenience for the rider.

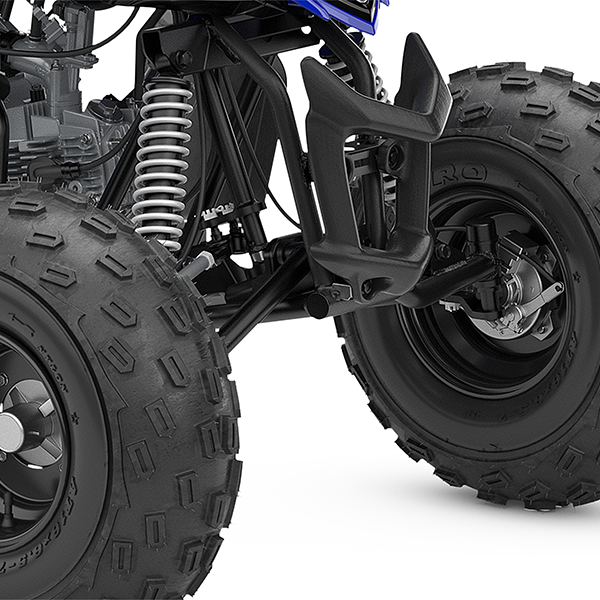

- Adjustable long-travel suspension: long-travel suspension helps keep the wheels in contact with the ground, even on undulating terrain. Independent front suspension prevents the movement of one wheel from being affected by the other. This improves handling, as it allows the YFM110R to travel over rough terrain with more precision and smoothness for greater comfort and control.

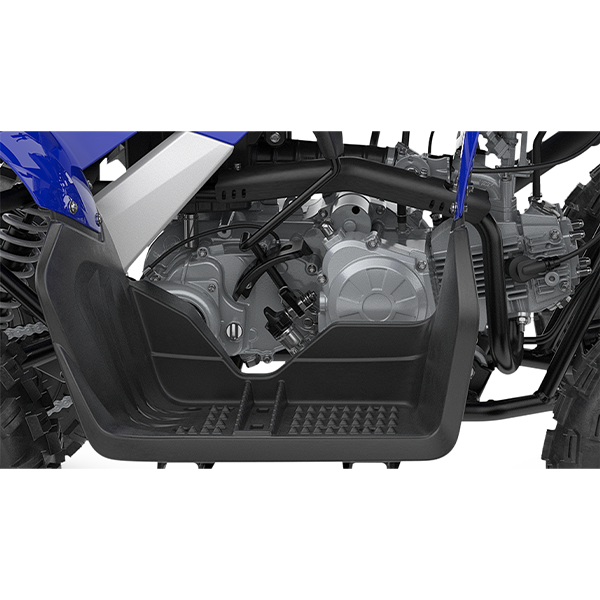

- Wide chassis and high ground clearance: compact engine design and long-travel suspension give Yamaha ATVs high ground clearance over demanding terrain. The wide chassis ensures excellent stability. If you run into an obstacle, the sturdy skid plates will help prevent damage to the ATV's engine and chassis.
- Ergonomic design: ATV riding involves using an unusual combination of muscles at the same time. The YFM110R is designed to suit the different anatomies and weights of users aged 10 years and upwards.
TECHNICAL SPECIFICATIONS
ENGINE AND TRANSMISSION
- Engine type: Single-cylinder; 4-stroke; air-cooled; SQHC; 2 valves
- Cylinder capacity: 49,4 cc
- Diameter per stroke: 39 x 41,4 mm
- Compression ratio: 8.5:1
- Lubrication system: Wet sump
- Ignition system: CDI
- Ignition system: Electric and kick
- Transmission system: Automatic V-belt
- Final drive: Chain
CHASSIS
- Front suspension system: 60 mm wheel travel
- Rear suspension system: swing arm; 51 mm wheel travel
- Front brake: Drum brake
- Rear brake: Single mechanical drum
- Front tyres: AT16 x 6,5-7
- Rear tyres: AT16 x 7-7
DIMENSIONS AND WEIGHT
- Overall length: 1250 mm
- Overall width: 820 mm
- Height: 770 mm
- Seat height: 585 mm
- Wheelbase: 830 mm
- Minimum ground clearance: 88 mm
- Weight (including full oil and fuel tanks): 100 kg
- Fuel tank capacity: 5.8 L
- Oil tank capacity: 0,9 L
Important information
ATVs with engines up to 50 cc are only recommended for riders aged 6 years and older and only under adult supervision.
ATVs can be dangerous to operate. For your safety: Always avoid paved surfaces. ATVs and side-by-side vehicles are designed for unpaved surfaces only. Driving on paved surfaces can seriously affect handling and even result in loss of control. Always wear a helmet, goggles and protective clothing. Never carry passengers on ATVs and always wear a seat belt when riding in a side-by-side vehicle. Don't try to do stunts.
Never drive under the influence of alcohol or drugs. Avoid speeding. Pay special attention in difficult terrain. Be kind to your environment and mind your surroundings. Always drive responsibly, respecting the environment, national and local laws. Yamaha recommends that all occupants of ATVs and side-by-side vehicles receive a certified training course. For safety and training information, please consult your dealer or contact the Yamaha distributor in your country. The specifications and appearance of Yamaha products are subject to change without notice. Those shown here are for illustrative purposes only and do not imply a contractual description of the products.
Some models are shown with optional accessories. All drivers featured in this brochure are professionals: don't try to imitate them. All ATVs and side-by-side vehicles come with a 12-month limited factory warranty. For more information, please consult your dealer. The warranty is null and void if the vehicle is used for racing/competition.
