Yamaha Kodiak 700 Adult Quad Green BYY10MB10M
Before you buy this impressive quad, you should know:
- Delivery at the dealership.
- The registration fee is NOT included and will be paid at the dealership. The amount will vary according to the model, power and autonomous community.
- The Tax on Certain Means of Transport (IEDMT) is NOT included and is subject to Law 38/1992, of 28 December, on Special Taxes. (% by autonomous community).
- The price does NOT include any kind of insurance.
- This vehicle is approved as a Tractor (T2). We recommend that the buyer be registered with the Spanish Registry of Agricultural Machinery (ROMA).
- Remember that it is the user's responsibility to respect the safety regulations established by the DGT for the use of these vehicles.
Make every day a little bit better
Designed for farm and forestry managers as well as industrial users who need a rugged vehicle for various applications in extreme conditions, the easy-to-use Kodiak 700 always delivers maximum performance at excellent value.
Powered by the new high-torque 686 cc MK II engine and featuring a compact chassis with a comfortable seat, perfect for day-to-day use, this hard worker has a capacity of 140 kg in addition to the driver and can tow up to 600 kg.
Its smooth Ultramatic® CVT transmission and mechanical 2WD/4WD traction selection system make this ATV ideal for a long day's work and towing tasks.
This Yamaha ATV is truly indefatigable, but that's not all. Weather permitting, our vehicles are also suitable for fun.
Discover all the advantages of the Yamaha YFM110R Racing Blue Kids Off-road Quad

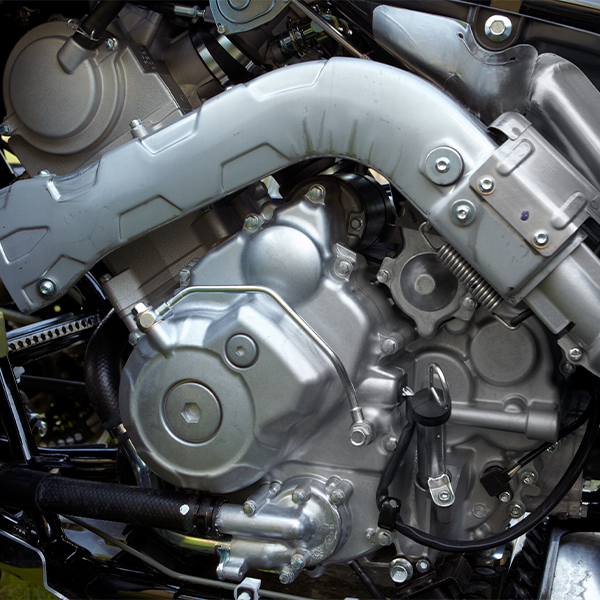

- 686 cc SOHC MK II engine: the indefatigable Kodiak 700 EPS is powered by a large displacement engine that produces class-leading power and torque. Equipped with an MK II 686 SOHC engine with second-generation 4-valve cylinder head, EFI throttle body, fine-tuned ECU mapping, refined tolerances and other improvements, it offers lower fuel consumption, higher torque and more consistent performance.
- Ultramatic® transmission: with high, low, reverse, neutral and park, Yamaha's industry-leading Ultramatic® automatic transmission system is one of the toughest and most efficient CVT systems in the ATV world. The utility-oriented gears produce excellent tractive power at low speeds and a natural engine braking feel, facilitating confidence and control when descending gradients.

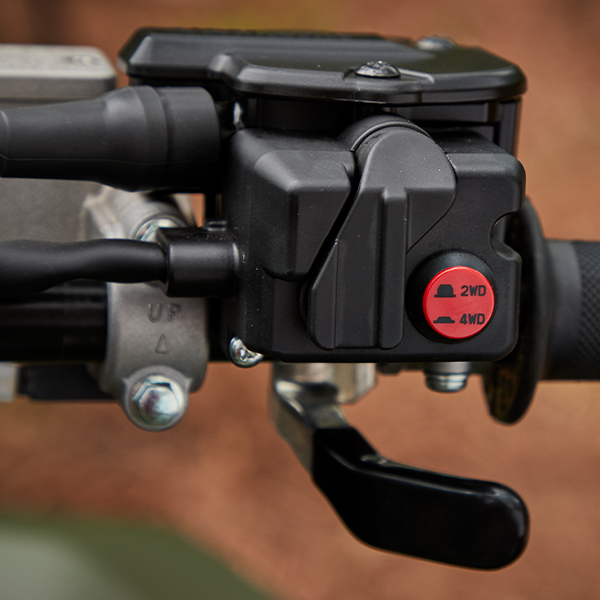

- On-Command®2WD/4WD/Differential Lock Selector: Kodiak 700 EPS models are equipped with an easy-to-operate On-Command® system with 2WD/4WD and 4WD with differential lock for full control of fast and effective switching between 2WD and 4WD. The differential lock also allows you to choose the right option to suit the terrain and surface conditions.
- Independent suspension and front disc brake: The Kodiak 700 EPS's compact independent double wishbone suspension design and KYB long-travel shock absorbers provide a high level of comfort along with excellent manoeuvrability, perfect for tackling the toughest terrain. For tough, reliable braking, the Kodiak 700 is equipped with front disc brakes and a sealed rear brake design.
- Electronic Power Steering (EPS): To improve comfort and minimise effort, the Kodiak 700 EPS features Electronic Power Steering (EPS), specifically designed to provide the optimum balance of driver assistance and precision in response. Thanks to the lightness and precision of the steering, the system enhances driver comfort, confidence and control.

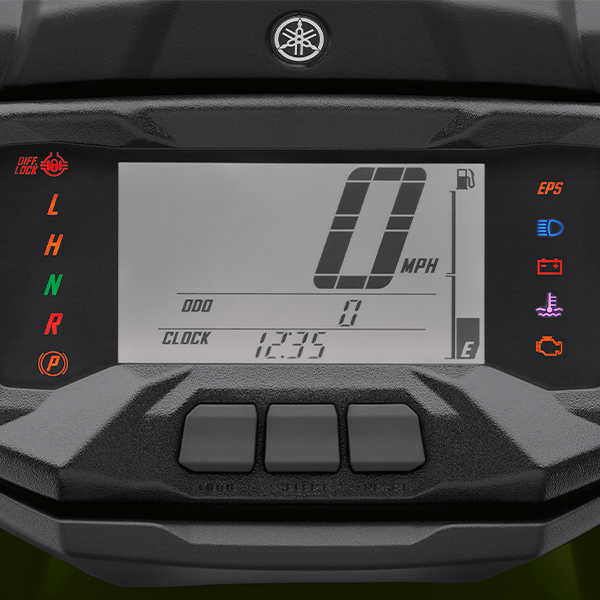

- Complete instrumentation: The Kodiak 700 EPS features digital instrumentation including fuel gauge, speedometer, odometer, dual trip meters, hour meter, clock, 4WD status, gear engaged indicator and EPS warning light.
TECHNICAL CHARACTERISTICS
ENGINE AND TRANSMISSION
- Engine type: Single-cylinder; 4-stroke; liquid-cooled; SOHC; 4 valves
- Cylinder capacity: 686 cc
- Diameter per stroke: 102 x 84 mm
- Compression ratio: 10.1:1
- Lubrication system: Wet sump
- Fuel system: Electronic fuel injection
- Ignition system: TCI
- Ignition system: Electricity
- Transmission system: L/H/N/R/P; Ultramatic® V-belt and with motor brake on rear and front wheels.
- Transmission system: On-Command® 2WD, 4WD, 4WD with Di-lock
- Final drive: Axis.
CHASSIS
- Front suspension system: Independent double fork; 180 mm stroke; 5-position preload adjustment
- Rear suspension system: Independent double fork; 230 mm stroke; 5-position preload adjustment
- Front brake: Double ventilated hydraulic disc
- Rear brake: Oil-bath multi-disc rear brake in rear gearbox
- Front tyres: Maxxis MU19 AT25x8-12, E-marking / steel rims
- Rear tyres: Maxxis MU19, AT25x10-12, E-marking / steel rims
LOAD LIMITS
- Front grille: 50 kg
- Rear grille: 90 kg
DIMENSIONS AND WEIGHT
- Overall length: 2070 mm
- Overall width: 1180 mm
- Height: 1240 mm
- Seat height: 860 mm
- Wheelbase: 1250 mm
- Minimum ground clearance: 275 mm
- Minimum turning radius: 3.2 m
- Fuel tank capacity: 18 L
- Oil tank capacity: 2.6 L
ADDITIONAL FEATURES
- Steering system: Ackermann type electronic power steering
- Towing capacity: 600 kgf
Important information
ATVs with engines up to 50 cc are only recommended for riders aged 6 years and older and only under adult supervision.
ATVs can be dangerous to operate. For your safety: Always avoid paved surfaces. ATVs are designed for unpaved surfaces only. Driving on paved surfaces can seriously affect handling and even result in loss of control. Always wear a helmet, goggles and protective clothing. Never carry passengers on ATVs. Don't try to do stunts.
Never drive under the influence of alcohol or drugs. Avoid speeding. Pay special attention in difficult terrain. Be kind to your environment and mind your surroundings. Always drive responsibly, respecting the environment, national and local laws. Yamaha recommends that all ATV occupants receive a certified training course. For safety and training information, please consult your dealer or contact the Yamaha distributor in your country. The specifications and appearance of Yamaha products are subject to change without notice. Those shown here are for illustrative purposes only and do not imply a contractual description of the products.
Some models are shown with optional accessories. All drivers featured in this brochure are professionals: don't try to imitate them. All ATVs come with a 12-month limited factory warranty. For more information, please consult your dealer. The warranty is null and void if the vehicle is used for racing/competition.
